TF NI 9

Mobile lighting tower without generator.

- MAXIMUM HEIGHT 9 M

- HYDRAULIC LIFTING

- SET-UP FOR COUPLING WITH GENERATOR FROM 8 TO 20 kVA

- AVAILABLE BULBS: 4x280W LED, 4x1000W METAL HALIDES or 6x1500W HALOGEN LIGHTS

- ON SLOW TRAILER

TF NI 9 are lighting towers without a built-in generating set, ideal for direct connection to the grid or for those who have their own generator.

Indeed, the frame is set up to be coupled with generating sets from 8 to 20 kVA.

The different types of bulbs available ensure great versatility of use in any working environment.

Thanks to the set-up on a slow trailer, they can be easily towed for handling on sites.

Sectors of use: rental, events, roadworks and construction sites.

More Information

TECHNICAL FEATURES

- 9 m zinc plated telescopic mast

- Hydraulic raise/lower

- 340 degrees manual mast rotation

- Certified wind proof up to 80 km/h

- Site tow with mudguards and 4 x adjustable stabilisers, two extendable

- Lifting hooks and forklift pockets

- Frame prepared for installing a generating set from 8 to 20 kVA

- Dimension with tower closed: 3920 x 1410 x 2240 mm

- Dimension with tower open: 3920 x 1975 x 9000 mm

TF NI 9 L-4x280

• 4 LED LAMPS 280W with single-phase power cable

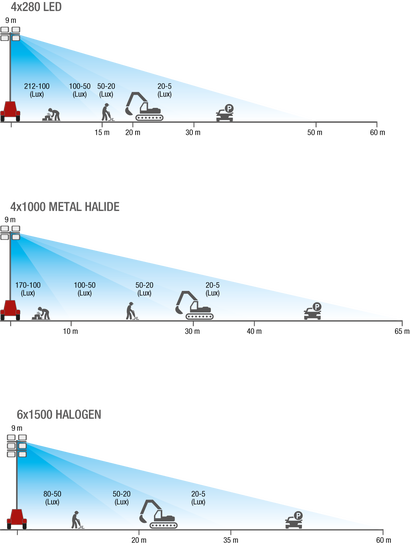

• Illuminated area: 4200 mq - 18 Lux average

• Total Lumen: 144700

• Weight: 790 kg (excluding the generator)

• MOSA generating sets that can be used: please consult MOSA sales network

TF NI 9 J-4x1000

• 4 METAL HALIDE LAMPS 1000 W with single-phase power cable

• Illuminated area: 4200 mq - 25 Lux average

• Total Lumen: 340000

• Weight: 790 kg (excluding the generator)

• MOSA generating sets that can be used: please consult MOSA sales network

TF NI 9 A-6x1500

• 6 HALOGEN LAMPS 1500 W with three-phase power cable

• Illuminated area: 4200 mq - 16 Lux average

• Total Lumen: 21600

• Weight: 790 kg (excluding the generator)

• MOSA generating sets that can be used: please consult MOSA sales network
