TF II 9 Y

High performance lighting tower with an integrated power generator.


- MAXIMUM HEIGHT 9 M
- HYDRAULIC LIFTING
- 7.5 kVA SUPER-SILENCED GENERATOR
- AVAILABLE BULBS: 4x300 W LED  or  4x1000 W METAL HALIDES
- OPERATING TIME 197 HOURS (LED)


TF II 9 Y is a lighting tower with high performance levels in any condition of use. It can effectively illuminate areas up to 4,200 sq m

TF II 9 Y has a 9-metre telescopic pole with hydraulic lifting and manual rotation by 340°, four 300 Watt LED lights (or four traditional 1000 Watt metal halide lights) with a single ON switch for each light and a generating set with a water-cooled Yanmar motor.

The exclusive upper protection of the telescopic pole protects against atmospheric agents, site debris, dust and leaves. This is one of the most delicate areas of lighting towers. Moreover, the rounded edges of the cowling also help the outflow of rainwater.

There is a wide variety of versions available: mounted on a base, with a slow trailer and with a fast trailer type-approved for use on roads.

Sectors of use: rental, events, roadworks and construction sites.

More Information

Engine

Model Fuel Starter Output Stand By Output PRP Cylinders / Displacement Speed Cooled
Yanmar 3TNV76 Diesel Electric 9 kW (12.2 HP) 8.2 kW (11.1 HP) 3 / 1116 cm³ 1500 rpm Water

Technical Features

- 9 m zinc plated telescopic mast
- Hydraulic raise/lower
- 340 degrees manual mast rotation
- Certified wind proof up to 80 km/h
- 4 outriggers, 2 extendable and adjustable in height
- Tank: 110 l
- Acoustic power: LpA 65 dbA@7m

- Dimension with tower closed:
1780 x 1330 x 2050 mm (su base)
3160 x 1330 x 2250 mm (with site tow trailer)
3135 x 1400 x 2250 mm (with fast tow highway trailer, homologated)

- Dimension with tower open:
2210 x 1885 x 9000 mm (base)
3160 x 1885 x 9000 mm (with site tow trailer)
3135 x 1885 x 9000 mm (with fast tow highway trailer, homologated)

- Weight: 940 kg (base) - 1060 kg (with site tow trailer) - 1075 kg (with fast tow highway trailer, homologated)

Available versions

sample powersafe

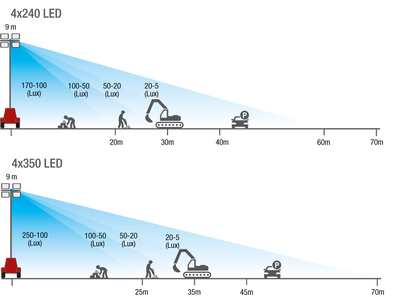

VERSION  TF II 9 Y L-4x300
 • 4 LED LAMPS 300 W
 • Illuminated area: 4200 mq - 21 Lux average
 • Total Lumen: 130.000
 • Running time: 197 h
 • Available on base, with site tow trailer or with fast tow highway trailer, homologated


VERSION  TF II 9 Y J-4x1000
 • 4 METAL HALIDE LAMPS 1000 W
 • Illuminated area: 4200 mq - 25 Lux average
 • Total Lumen: 340.000
 • Running time: 75 h
 • Available on base, with site tow trailer or with fast tow highway trailer, homologated

Benefits

The MOSA integrated lighting towers are a perfect combination of four elements that contribute to the high efficiency of the product:

- the lights employ LED technology, with all the resulting benefits in terms of greater durability as they are designed for at least 20,000 hours of operation, energy efficiency and environmental sustainability. Moreover, MOSA extends the warranty on LED lights up to 5 years

- the motor is one of the most compact ones available on the market and is very powerful also in terms of fuel consumption; it is also ultra silenced for the benefit of noise pollution.

- the single-phase, synchronous and brushless alternator does not require specific maintenance and generates low consumption energy.

- finally, the design features a rounded cowling to promote rainwater outflow and large openings for easy maintenance.

With these technical benefits, the environmental impact of the MOSA lighting towers is really reduced to a minimum.
