TF NM 5.5
Mobile lighting tower without generator.
- MAXIMUM HEIGHT 5.5 M
- MANUAL LIFTING
- SET-UP FOR COUPLING WITH GENERATOR FROM 4 TO 7 kVA
- AVAILABLE BULBS: 4x150W LED, 4x400W METAL HALIDES, 4x400 or 4x1000W HALOGEN LIGHTS
- ON MANUAL TRAILER
TF NM 5.5 are lighting towers without a built-in generating set, ideal for direct connection to the grid or for those who have their own generator.
Indeed, the frame is set up to be coupled with single-phase generating sets from 4 to 7 kVA.
The different types of bulbs available ensure great versatility of use in any working environment.
Thanks to their contained weight and set-up on a manual trailer, they can be easily controlled by a single operator.
Sectors of use: rental, events, roadworks and construction sites.
TECHNICAL FEATURES
- 5.5 m zinc plated telescopic mast
- Manual winch raise/lower
- Two axes manually adjustable floodlights
- Certified wind proof up to 80 km/h
- Trolley with wheels, handles and 2 adjustable stabilisers
- Lifting hooks and forklift pockets
- Frame prepared for installing a generating set from 4 to 7 kVA
- Dimension with tower closed: 1430 x 1090 x 2180 mm
- Dimension with tower open: 1730 x 1570 x 5500 mm

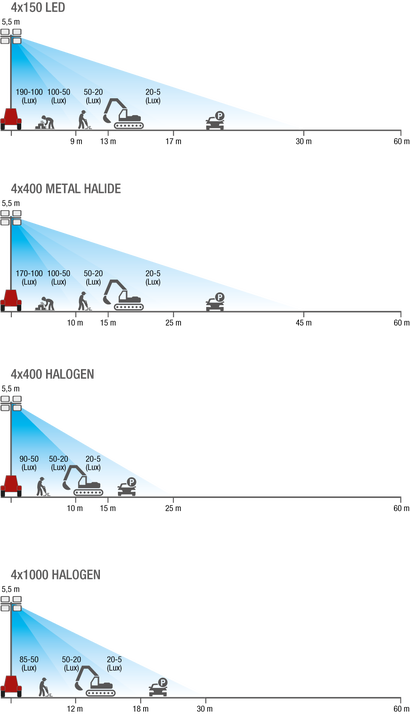

AVAILABLE VERSIONS
TF NM 5.5 L-4x150
• 4 LED LAMPS 150 W
• Illuminated area: 1800 mq - 13 Lux average
• Total Lumen: 76300
• Weight: 226 kg (excluding the generator)
TF NM 5.5 J-4x400
• 4 METAL HALIDE LAMPS 400 W
• Illuminated area: 1800 mq - 19 Lux average
• Total Lumen: 140000
• Weight: 226 kg (excluding the generator)
TF NM 5.5 A-4x400
• 4 HALOGEN LAMPS 400 W
• Illuminated area: 750 mq - 16 Lux average
• Total Lumen: 34400
• Weight: 195 kg (excluding the generator)
TF NM 5.5 A-4x1000
• 4 HALOGEN LAMPS 1000 W
• Illuminated area: 1200 mq - 18 Lux average
• Total Lumen: 88000
• Weight: 200 kg (excluding the generator)
Safety lock
The
safety lock stops tower
descent at a safety height thus preventing the risk of collisions with the floodlights
during regular descent or in the event of sudden rupture of the cables of the telescopic
mast or of the automatic brake of the lifting winch.
