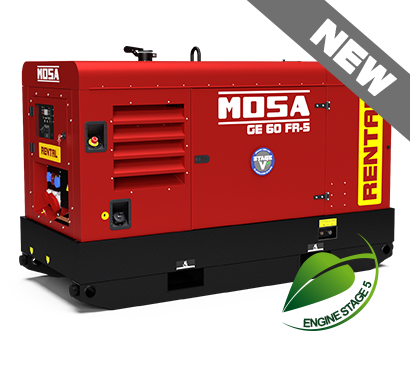

GE 60 FR-5

Diesel generating set FPT F34TEVP01 - Three-phase synchronous alternator  - Water Cooled

POWER RATINGS THREE-PHASE

  • Stand-By three-phase power: 60 kVA (48 kW) / 400V / 86.6A
  • PRP three-phase power: 60 kVA (48 kW) / 400V / 86.6A
  • COP power: 34 kVA / kW / 400V / 49.1A
  • Frequency: 50 Hz
GENERAL SPECIFICATIONS

  • Fuel tank capacity: 270 lt.
  • Running time (75% to PRP): 25 h
  • Measured acoustic power LwA (pressure LpA): 91 dB(A) (66 dB(A) @ 7m)
  • Guaranteed acoustic power LwA (pressure LpA): 93 dB(A) (68 dB(A) @ 7m)
  • Dry Weight: 1410 Kg
  • Dimensions (LxWxH): 2531x1110x1625 mm

More Information

Engine

Model Fuel Starter Output Stand By Output PRP Cylinders / Displacement Speed Cooled
FPT F34TEVP01 Diesel Electric 54 kW (73.4 hp) 54 kW (73.4 hp) 4 / 3.4 lit. (3400 cm³) 1500 rpm Water

Controller Intelilite4 AMF9

sample powersafe IntelliLite9 is one of the most complete versions of controllers for generating sets.

The possibility of expanding the number of digital inputs and outputs is very flexible, suitable for generators with high number of connected elements.

The expansion module allows the user to add internet, SMS and MODBUS connectivity to the generating set allowing remote control of the machine.

The user-friendly backlit display allows the user to view every parameter of the generating set.

DOWNLOAD MANUAL

OPTIONS ON REQUEST
