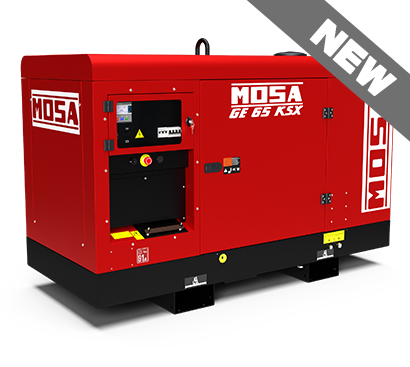

GE 65 KSX

Diesel generating set KOHLER - KDI 3404TM - Water CooledThree-phase synchronous alternator

POWER RATINGS THREE-PHASE

Stand-By three-phase power: 66 kVA(52.8 kW) / 400V /95.3A
PRP three-phase power: 60 kVA(48 kW) / 400V / 86.7A
PRP single-phase power: 22 kVA / kW /230V / 95.6A
Frequency: 50 Hz

GENERAL SPECIFICATIONS

Fuel tank capacity: 100 lt.
Running time (75% to PRP): 8.8 h
Measured acoustic power LwA (pressure LpA): 91.5 dB(A) (66.5 dB(A) @ 7m)
Guaranteed acoustic power LwA (pressure LpA): 93 dB(A) (68 dB(A) @ 7m)
Dry Weight: 1215 Kg
Dimensions (LxWxH): 2050x900x1428 mm

More Information

Engine

Model	Fuel	Starter	Output Stand By	Output PRP	Cylinders / Displacement	Speed	Cooled
KOHLER - KDI 3404TM	Diesel	Electric	59.9 kW (81.4 HP)	54.4 kW (74 HP)	4 / 3359 cm³ (3.359 lt.)	1500 rpm	Water

AVR

The Automatic Vcoltage Regulator (AVR) is an electronic device that regulates the voltage level at all times to maintain precise AC output from the generating set. The AVR calculates how much voltage has to be sent to the exciter numerous times a second, therefore stabilising the output voltage to a predetermined set point.

The control characteristics of an AVR system are much more accurate than those of self-regulated alternators.
