GE 225 FSX

Generator Diesel FPT (IVECO) NEF67 TEA2 / FPT (IVECO) C87 TE1F - Three-phase synchronous alternator - Three-phase power 204 kVA (163 kW) / 206 kVA (163 kW) - Water Cooled

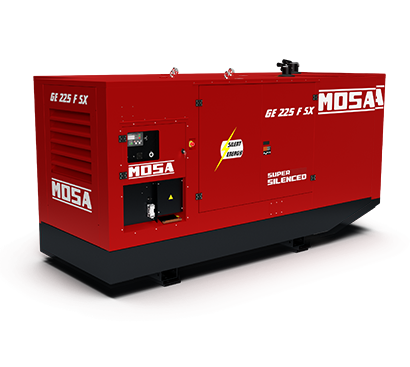

MOSA model GE 225 FSX is a super silenced diesel generating set with a common-rail engines with electronic governor and closed crankcase ventilation. The machine construction incorporates an integral roll bar, two central lifting points, forklift pockets and rear canopy section that is hinged to provide full access to the engine for maintenance. The 425 litre fuel tank provides a running time of 12.5 / 11.5 hours at a weight of 2850kg / 3220kg.

The bunded base must ensure the containment of fluids in the engine and fuel tank in the event of any loss, to prevent their dispersion in the environment.

control ensures very stable power for equipment including sensitive electronics, computers, power tools etc. The recessed control panel houses the sockets and machine controls including circuit breaker and engine protection device.

models are pre-wired to accept the optional MOSA EAS Automatic Start-Up Panel which plugs into the front panel of the Generator and enables the machine to be used as an emergency standby power unit in the event of power failure from the mains supply.

Also available is an optional TCM remote control allowing start/stop of the engine up to 10 metres distance from the machine.

Suitable for a wide range of uses including industrial sites, residential, construction, noise sensitive environments and emergency standby power.

In according with CE regulation

More Information


Model Fuel Starter Output Stand By Output PRP Cylinders / Displacement Speed Cooled
FPT (IVECO) C87 TE1F Diesel Eletric 195 kW (265.7 HP) 177 kW (240.7 HP) 6/ 8700 cm³ 1500 rpm Water
FPT (IVECO) NEF67 TE2A Diesel Electric 193 kW (262.5 HP) 175 kW (238 HP) 6/ 6700 cm³ 1500 rpm Water

Technical Features

  • Engine protection EP6
  • Automatic voltage regulator “AVR
  • Common-rail engines with electronic governor
  • Closed crankcase ventilation
  • Four pole circuit breaker
  • Oil drain pump
  • Bunded base  with drain plug
  • Two central lifting eyes
  • Ready for connection to automatic transfer unit EAS

  • IP protection degree: 44
  • Dimension:  3750x1400x2030 mm
  • Dry weight : 2850 kg (FPT (IVECO) NEF67 TE2A)
  • Dry weight : 3220 kg (FPT (IVECO) C87 TE1F)
  • Measured acoustic power LwA (pressure LpA): 93 dB(A) (68 dB(A) @ 7m) (FPT (IVECO) NEF67 TE2A)
  • Guaranteed acoustic power LwA (pressure LpA): 94 dB(A) (69 dB(A) @ 7m) (FPT (IVECO) NEF67 TE2A)
  • Measured acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7m) (FPT (IVECO) C87 TE1F)
  • Guaranteed acoustic power LwA (pressure LpA): 96 dB(A) (71 dB(A) @ 7m) (FPT (IVECO) C87 TE1F)
