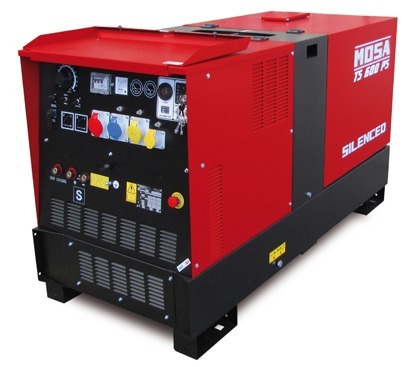

TS 600 PS BC

Diesel Engine driven welder - PERKINS 1103A - 33TG1 Engine -  Three-phase asyncronous alternator  - Three-phase generation 40 kVA - Single-phase generation 15 kVA - Max welding current: 600A

The engine-driven welder TS 600 PS-BC is a professional machine with electronic control of the welding current capable of delivering up to 600 A with a duty cycle of 60%.

Equipped with a Perkins water cooled diesel engine 1103 series and an asynchronous alternator and thanks to the lower engine speed (1500 rpm) it is suitable for continuous operation in all conditions and can be used simultaneously as a welder and as a three-phase and single-phase electrical generator up to 40 kVA.

The TS 600 PS-BC is designed to satisfy the requirements of professional welding with direct current and can weld any kind of electrode (rutile, basic, cellulose) up to 8 mm in diameter. The characteristic BC (base current) is particularly suitable for vertical down pipe welding.

It is a super-silenced engine-driven welder with canopy. It can function simultaneously as a welder and as a three-phase and single-phase electrical generator.

Suitable for a wide range of applications, including large metal fabrications oil pipelines and construction sites.

In according with CE regulation

More Information

Engine

Model Fuel Starter Output Cylinders / Displacement Speed Cooled
Perkins 1103A - 33TG1 Diesel Electric 45.6 kW (62 HP) 3/ 3300 cm3 1500 rpm Water

Technical Features

sample powersafe WELDING
  • Current range, continuous: 20 ÷ 600A
  • Duty cycle: 600 A 35% - 550 A 60% - 500 A 100%
  • Open circuit voltage: 75 V
  • Arc welding source in D.C. welding
  • Electronic regulation of welding current
  • Welds any type of electrode, including cellulosic
  • Special BC (Base Current) circuit for vertical-down pipe welding
  • Double welding output (20A-200A / 20A-400A)
  • Arc Gouging dedicated socket
  • A.C. generator, single-phase and three-phase
  • Aux power also available while welding

GENERAL
  • Dry weight: 1025 kg
  • Dimensions: 2030x870x1130 mm
  • Acoustic power LwA (pressure LpA) : 97 dB(A) (72 dB(A) @ 7m)

VERSIONS ON REQUEST
  • Auxiliary output: 400Y - 230I - 110I CTE : 1x400V 32A 3P+N+T CEE - 1x230V 32A 2P+T CEE - 1x110V 32A 2P+T CEE - 1x110V 16A 2P+T CEE
