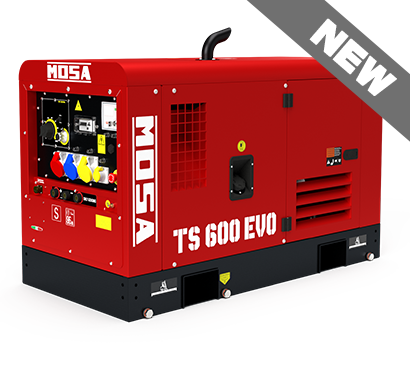

TS 600 EVO

Engine Driven Welder Diesel DEUTZ F4L2011 - Three-phase asynchronous Alternator - Air/Oil cooling

WELDING

  • Welding current: 20A ÷ 550A (50Hz)
  • Welding current: 20A ÷ 600A (60Hz)
  • Service: 500A - 60% / 400A - 100% (50Hz)
  • Service: 550A - 60% / 450A - 100% 600A (60Hz)
  • Open circuit voltage (no-load voltage): 72 Vcc (77.5 Vcc dc peak) (50Hz)
  • Open circuit voltage (no-load voltage): 75 Vcc (80 Vcc dc peak) (60Hz)

POWER RATINGS
  • Three-phase power: 18 kVA / 400 V / 26 A (50Hz)
  • Three-phase power: 20 kVA / 400 V / 28.9 A (60Hz)
  • Single-phase power: 10 kVA / 230 V / 43.5 A (50-60Hz)
  • Single-phase power: 5 kVA / 115 V / 43.5 A (50-60Hz)

GENERAL SPECIFICATION
  • Tank capacity: 60 l (50-60Hz)
  • Running time (welder 60%): 12.7 h (50Hz)
  • Running time (welder 60%): 10.5 h (60Hz)
  • Measured acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7 m) (50Hz)
  • Guaranteed acoustic power LwA (pressure LpA): 96 dB(A) (71 dB(A) @ 7 m) (50Hz)
  • Acoustic power LwA (pressure LpA): 98 dB(A) (73 dB(A) @ 7 m) (60Hz)
  • Weight: 870 Kg (50-60Hz)
  • Dimensions max. on base Lxlxh:  1600x790x1125 mm (50-60Hz)

More Information

Engine

Model Fuel Starter Output Cylinders / Displacement Speed Cooled
DEUTZ F4L2011 Diesel Electric 27.7 kW (37.7 hp) (50Hz) 4/ 3100 cm³ 1500 rpm Air
DEUTZ F4L2011 Diesel Electric 32.8kW (44.6 hp) (60Hz) 4/ 3100 cm³ 1500 rpm Air

ENGINE PROTECTION LOVATO

sample powersafe
The Lovato RGK420SA control unit has an ignition key and push buttons for controlling the engine. A wide LCD display allows the visualization of alarms and the monitoring of machine parameters. The main features are:

  • User interface with symbols, codes and texts.
  • Setpoints adjustable via controller buttons or PC
  • Remote Start and Stop
  • Configurable inputs and outputs
  • NFC interface for wireless programming

DOWNLOAD MANUAL



EVO CONTROL

sample powersafe EVO CONTROL is the front panel that using an analog control allows to have features mandatory for users:

  • Current control
  • Arc-force control
  • Half scale to increase the precision of the current control

EVO INSTRUMENTS

sample powersafe EVO INSTRUMENT implements a digital control that adds some features for the user, like:

  • Current control
  • Arc-force control
  • Display to view current and voltage
  • Led to check the VRD status
  • PRE-SETTING

OPTIONS ON REQUEST
